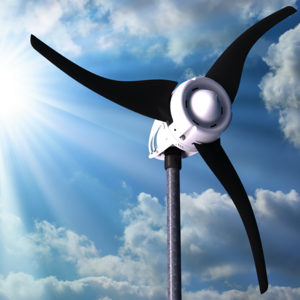

Kit éolienne LE-600 - LEADING EDGE

The LE-600 is a downwind turbine that is light and robust yet delivers fantastic power output in all wind conditions.

The LE-600 is designed around a unique low inertia axial flux generator which utilises Neodymium rare earth magnetic materials. This alternator has zero ‘cogging’ which, together with its highly efficient and low ‘TSR’ Whispower blades, allow the turbine to generate power at very low wind speeds and deliver a higher output than the competition in high wind speeds.

The LE-600 survives winds of up to 18m/s (40mph) by means of a passive aerodynamic design that reduces turbine RPM and power output at a certain threshold.

The downwind design reduces the size and weight of the turbine, whilst ensuring that there is no tail boom to amplify natural vibrations and eventually fail.

Output : 160W at 8m/s (18mph), 750W max
Silencieux : Low acoustic emissions from the advanced aerofoil blade design
Facile à installer : At 19.5Kg, the turbine is easy to install on high masts, reducing the cost of mounting structures
Powerful : Delivers high power output in all wind conditions
Design robuste : Aluminium alloy chassis and stainless steel components are protected from the elements with aerospace grade coatings and anodising

Rotor diameter: - 1.54 m
Rotor type - 3-Blade downwind
Blade material - Glass reinforced nylon
Rated output - 160W at 8m/s (18mph)
Peak output:;- 750W
Cut-in speed - 3m/s (6.7mph)
DC output voltage - 12V, 24V or 48V
Weight - 19.5Kg
Generator type - 3-Phase brushless NIB rotor PMA
Warranty: - 2 years
